Dosing Pump

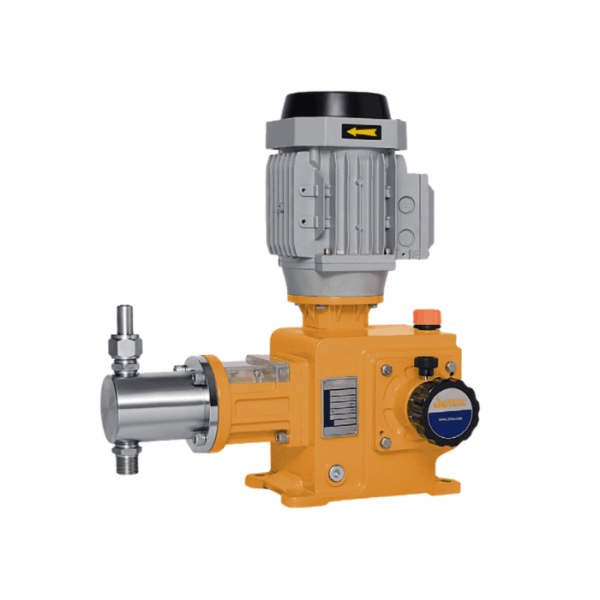

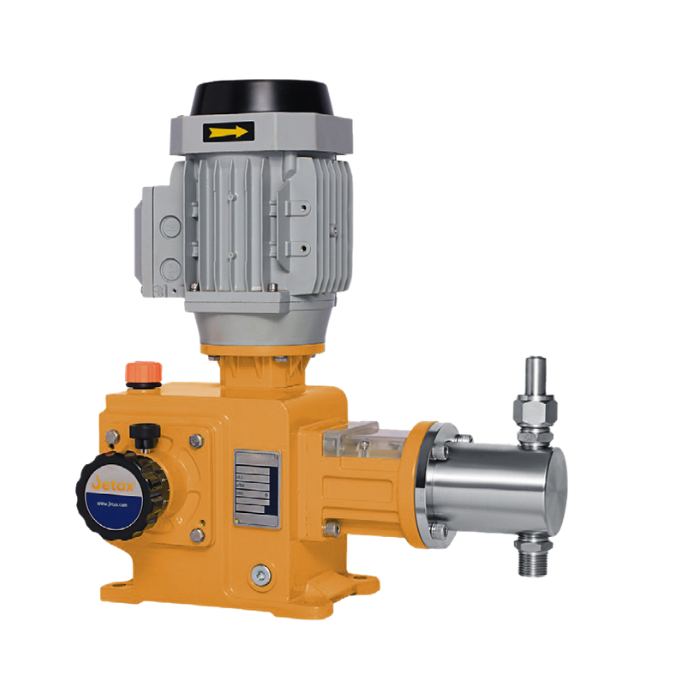

The JETAX Plunger Dosing Pump is engineered for precision metering and reliable fluid dosing in demanding industrial applications. With a flow capacity of up to 88 L/h and discharge pressure up to 20 bar, it ensures accurate and consistent chemical delivery.

Constructed with SS316L pump head and valves, PTFE sealing, and an explosion-proof IEC BT4 motor, this dosing pump guarantees long-term durability, chemical resistance, and operator safety.

Its manual flow control and vertical plunger design make it an excellent choice for applications requiring stable dosing under variable process conditions.

Applications:

• Chemical dosing in process industries
• Water treatment plants
• Petrochemical & refinery operations
• Power plants
• Pharmaceutical & laboratory dosing systems

Key Features:

• Flow capacity: 88 L/h
• Max discharge pressure: 20 bar
• Accuracy: ±2.0%
• Max temperature: 120°C
• Viscosity range: 0–2000 Cp
• Suction height: 2–3 meters
• Explosion-proof motor (0.37 KW, 3 Phase, 400V, 50Hz, IP55)
• Robust SS316L plunger with ceramic coating
• PTFE valve gasket & packing seal for leak-proof operation

Technical Specifications:

• Pump Type: Plunger Type
• Model: JXP88/2.0
• Capacity: 88 L/h
• Discharge Pressure: Max. 20 bar
• Suction Height: 2–3 m
• Plunger Diameter: 32 mm
• Stroking Speed: 96/min
• Temperature Range: Up to 120°C
• Viscosity: 0–2000 Cp
• Accuracy: ±2.0%
• Flow Control: Manual
• Motor Power: 0.37 KW (Explosion-proof, IEC BT4)
• Protection Grade: IP55
• Motor Speed: 1450 rpm
• Estimated Weight: 40 kg
• Package Size: 59 × 47 × 50 cm (Carton Box)

Materials:

• Pump Head: SS316L
• Housing: Cast Iron
• Valve Housing/Seat/Balls: SS316L
• Valve Gasket: PTFE
• Plunger: SS316L with ceramic coating
• Packing Seal: PTFE
