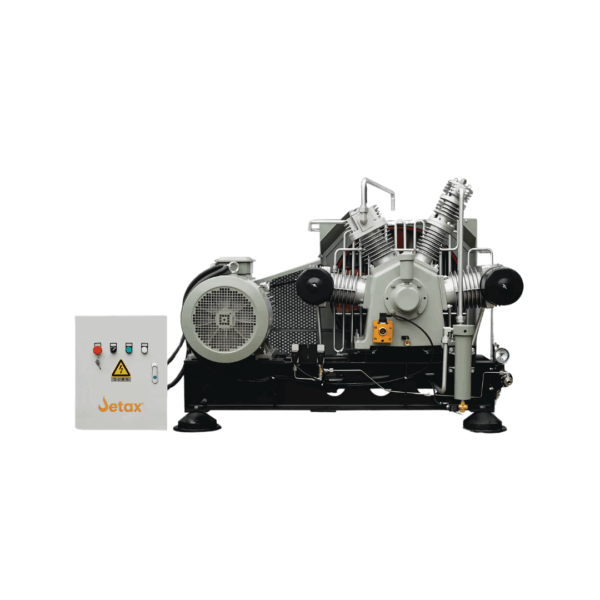

JETAX JTX-RCP80 Reciprocating Air Compressor

The JETAX JTX-RCP80 Reciprocating Air Compressor is a high-pressure, multi-stage compressor built for critical industrial applications. With a working pressure of 80 bar and free air delivery of 1200 L/min, it ensures unmatched reliability for tasks such as LPG loading arm testing, pipeline validation, and leakage detection.

Engineered with a robust cast-iron crankcase, alloy aluminum pistons, and precision valves, the compressor guarantees durability and long service life. Its oil-lubricated system, coupled with safety features including multi-stage safety valves, automatic condensate drainage, and pressure switches, enhances efficiency and minimizes downtime.

Available in air-cooled and water-cooled configurations, the JTX-RCP80 is skid-mounted with anti-vibration supports, ensuring safe installation and stable operation.

Applications:

• LPG loading arm and cylinder pressure testing
• Valve and pipeline leakage detection
• Pneumatic tool validation
• Energy and power plant systems
• High-pressure industrial testing

Key Features:

• Maximum pressure: 80 bar
• Flow capacity: 1200 L/min (20 L/sec)
• Three-cylinder multi-stage compression
• 15 kW motor (IP55, Class F insulation, ≥90% efficiency)
• Oil-lubricated with oil level switch
• Automatic start/stop via pressure switch
• Skid-mounted with anti-vibration supports
• Available in air-cooled or water-cooled versions

Technical Specifications:

• Compressor Type: Reciprocating, Multi-Stage
• Max Pressure: 80 bar
• Free Air Delivery: 1200 L/min (20 L/sec)
• Cylinders: 3
• Motor Power: 15 kW
• Cooling: Air-cooled / Water-cooled
• Voltage: 400V / 50Hz / 3 Phase
• Protection Grade: IP55
• Insulation: Class F
• Duty Cycle: S1 Continuous
• Starting Method: Star-Delta
• Mounting: Skid with anti-vibration pads
