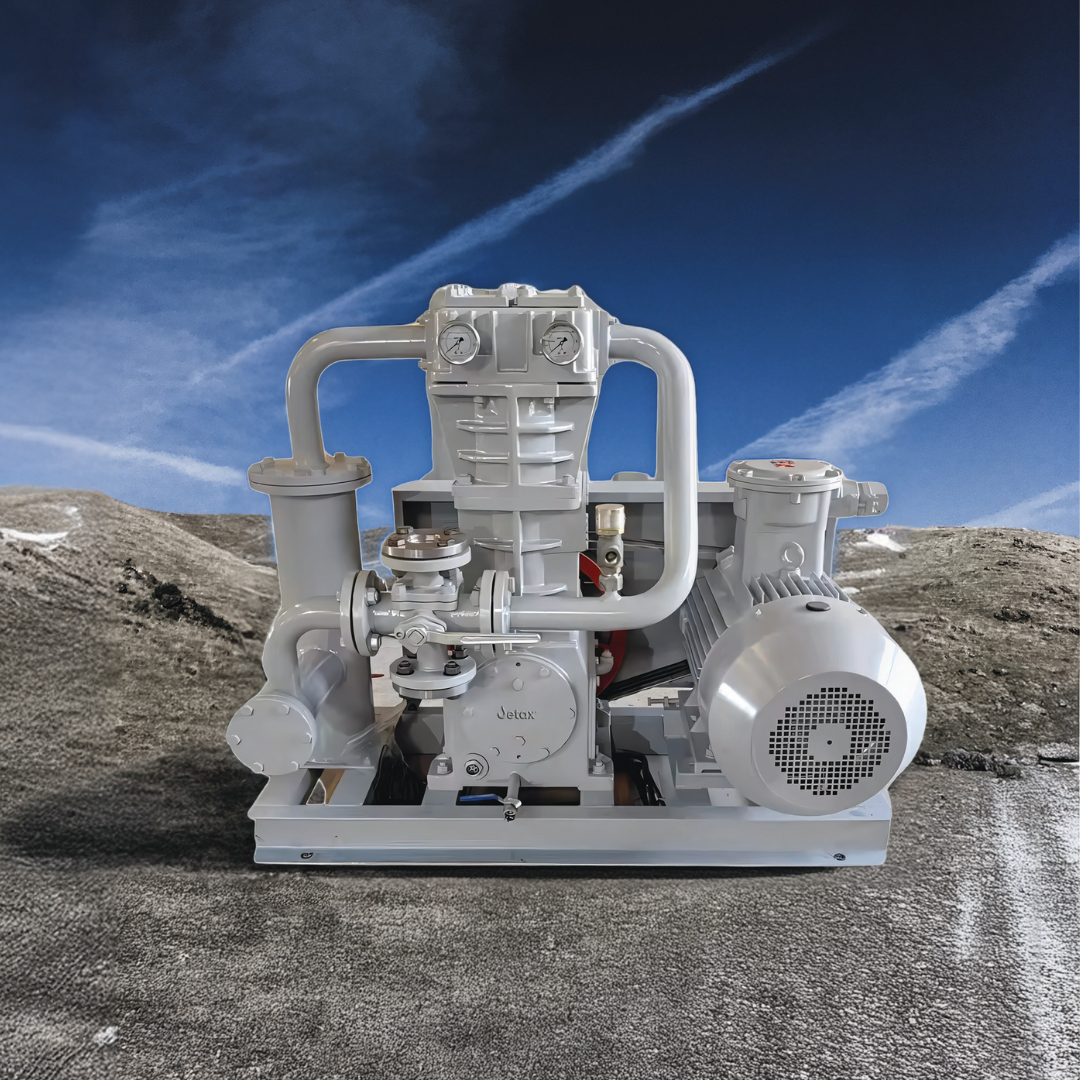

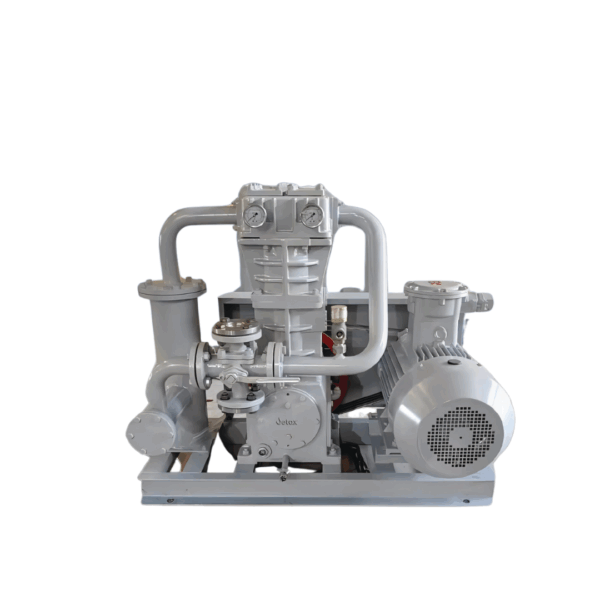

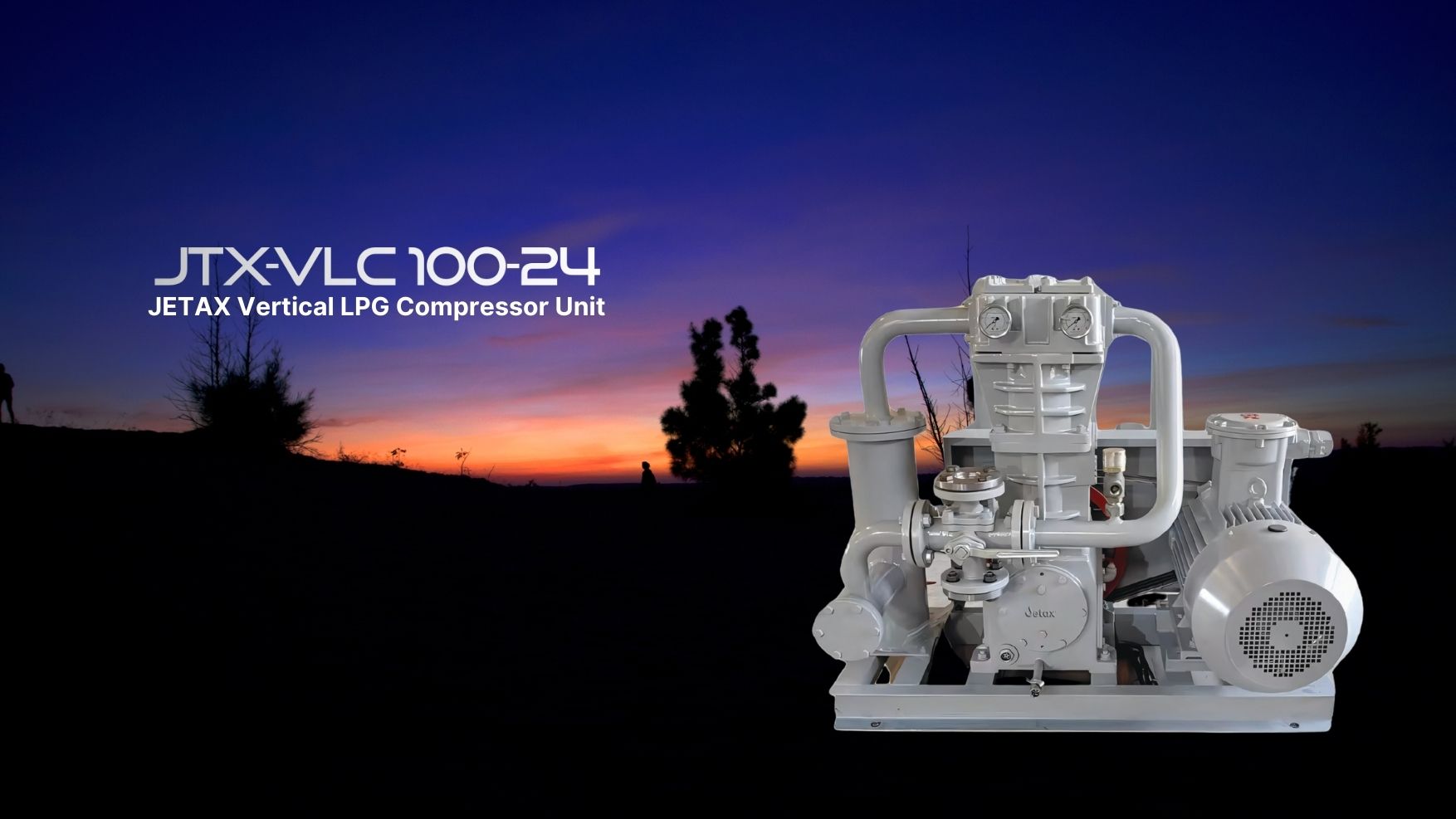

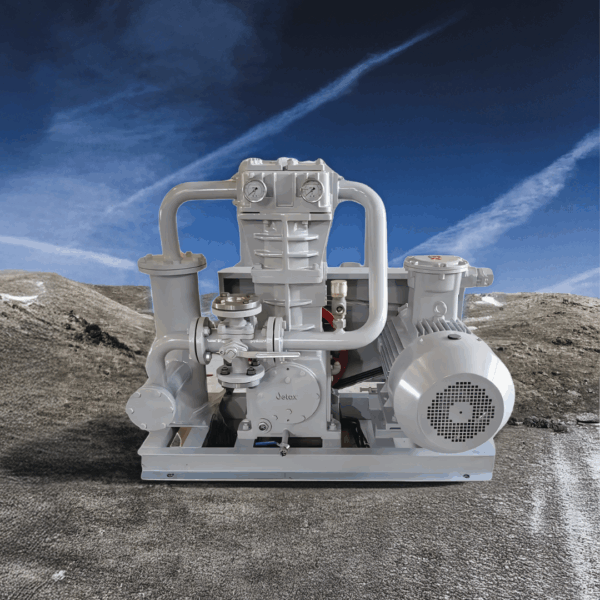

JETAX JTX-VLC100-24 Vertical LPG Compressor

Heavy-duty Vertical LPG Compressor Unit delivering 120 m³/h capacity at 24 bar, engineered with an ATEX explosion-proof motor for cylinder filling, bulk transfer, and vapor recovery systems.

Enquire Now

Share This Items :

Product Details

The JETAX JTX-VLC100-24 Vertical LPG Compressor is engineered to deliver maximum efficiency, reliability, and safety in demanding LPG handling environments. With a flow capacity of 120 m³/h and a working pressure of 24 bar, it provides stable and secure gas compression for critical operations.

Built with a dual-cylinder compression system, reinforced steel base, and ATEX-certified EEx d e IIC T4/T5 explosion-proof motor, this unit is designed for continuous-duty operation in Zone 1 hazardous areas. Its integrated control panel provides precise pressure regulation, automated safety shutdown, real-time monitoring, and optional remote operation.

Available in air-cooled or optional water-cooled configurations, the JTX-VLC100-24 is skid-mounted with anti-vibration supports, ensuring smooth operation and low maintenance in both stationary and mobile setups.

Applications:

LPG cylinder filling plants
Bulk LPG transfer systems
Vapor recovery and booster stations
Hazardous area installations (Zone 1)

Key Features:

Capacity: 120 m³/h at 1500 RPM
Max working pressure: 24 bar
Differential pressure: 4 bar
Dual-cylinder design for balanced operation
ATEX-certified explosion-proof motor (37 kW, IP65, Class F)
Zone 1 classification with Ex d/Ex e control panel
Oil pressure switch for compressor protection
Compact vertical skid design with anti-vibration mounts
Air-cooled (optional water-cooled) system
Emergency stop & overload protection

Technical Specifications:

Compressor:

Capacity: 120 m³/h
Cylinders: 2
Speed: 1500 RPM
Max Pressure: 24 bar
Differential Pressure: 4 bar
Cooling: Air-cooled (optional water-cooled)
Protection: Oil pressure switch
Dimensions (L×W×H): 1400 × 900 × 1180 mm
Loading/Unloading: 50 t/h

Motor:

Power: 37 kW
Voltage: 380 V (Star-Delta 690/400 V option)
Frequency: 50 Hz
Duty: S1 Continuous
Explosion Protection: EEx d e IIC T4/T5
Zone: Zone 1 hazardous areas
Ingress Protection: IP65
Insulation: Class F
Service Factor: 1.0

Control Panel:

Ex d or Ex e enclosure
Automatic start/stop with pressure switch
Overload & motor protection
Emergency stop function
Optional remote control

Attributes:

Attribute	Values	Visible	Variation
Compressor Type	Vertical LPG Compressor	Yes	No
Max Pressure	24 bar	Yes	Yes
Flow Capacity	120 m³/h	Yes	Yes
Motor	37 kW, ATEX Explosion-Proof, IP65, Class F	Yes	No
Cylinders	2	Yes	No
Cooling Options	Air-cooled, Water-cooled	Yes	Yes
Applications	Cylinder Filling, Bulk Transfer, Vapor Recovery	Yes	No
Zone Classification	Zone 1 (Hazardous Area)	Yes	No
Voltage	380V / 50Hz, Star-Delta 690/400V option	Yes	No
