Screw Air Compressor

High-efficiency 22kW rotary screw air compressor with IE3 motor, 3.8–4.2 m³/min airflow, and 7–10 bar working pressure. Built for continuous-duty operation with intelligent PLC control and low-noise design.

Enquire Now

Share This Items :

Product Details

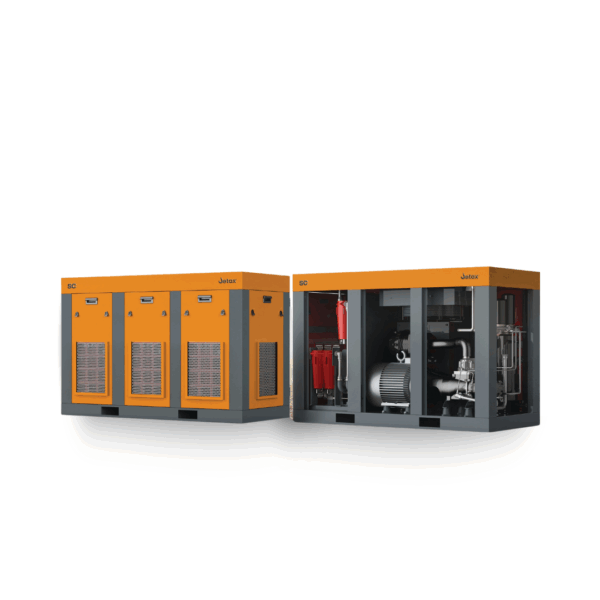

The SC-22-10FF Screw Air Compressor is a premium 22kW (30 HP) rotary screw unit designed for industrial operations requiring reliable, energy-efficient compressed air. With a Free Air Delivery (FAD) of 3.8–4.2 m³/min at 7–10 bar, it ensures stable airflow for applications in manufacturing, automotive, food processing, and heavy industries.

Featuring an advanced asymmetric screw rotor, direct-drive transmission, and air-cooled system, this compressor delivers consistent output while minimizing energy loss and operating costs. The robust cast iron air-end with oversized bearings guarantees over 50,000 working hours without major service.

Its intelligent PLC control system provides automated start/stop, load/unload control, fault diagnostics, and real-time monitoring. With a low noise level of 72 dB(A) and extended service intervals of over 8,000 hours, the SC-22-10FF ensures high productivity and reduced downtime.

Applications:

CNC machines & automation lines
Automotive assembly & pneumatic tools
Food & beverage packaging & processing
Pharmaceutical & chemical dosing/mixing
Construction, mining & oil/gas industries

Key Features:

22kW IE3 motor with high efficiency and reduced energy costs
3.8–4.2 m³/min FAD at 7–10 bar
Direct-drive system for minimal power loss
Air-cooled design for stable performance in harsh conditions
Smart PLC controller with temperature, pressure, and motor protection
Low noise level: 72 dB(A) for workplace comfort
Extended service life – 50,000+ hours air-end durability

Technical Specifications:

Model: SC-22-10FF
Type: Stationary Rotary Screw Compressor
Power Rating: 22 kW / 30 HP
Free Air Delivery (FAD): 3.8–4.2 m³/min (134–148 CFM)
Working Pressure: 7–10 bar (102–145 PSI)
Noise Level: 72 dB(A)
Drive Type: Direct Drive
Cooling Method: Air-Cooled
Power Supply: 380V / 50Hz / 3-Phase (other voltages available)
Control System: Smart MicroPLC with LED Display
Dimensions (L×W×H): 1450 × 850 × 1250 mm
Weight: 650 kg

Attributes:

Attribute	Values	Visible	Variation
Compressor Type	Rotary Screw Compressor	Yes	No
Power Rating	22 kW / 30 HP	Yes	Yes
Free Air Delivery	3.8–4.2 m³/min (134–148 CFM)	Yes	Yes
Working Pressure	7–10 bar (102–145 PSI)	Yes	Yes
Drive Type	Direct Drive	Yes	No
Cooling	Air-Cooled	Yes	No
Noise Level	72 dB(A)	Yes	No
Applications	Manufacturing, Automotive, Food Processing, Pharma, Mining	Yes	No
Control System	Smart PLC with diagnostics & monitoring	Yes	No
Voltage	380V / 50Hz / 3-Phase (other voltages available)	Yes	No
Weight	650 kg	Yes	No
