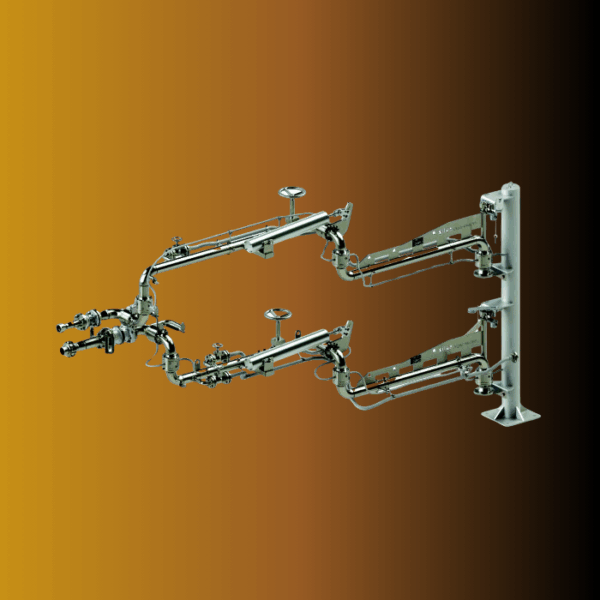

LPG Loading Arm

The JETAX JLA2543 LPG Loading Arm ensures safe, efficient transfer of liquefied petroleum gas between rail/truck tanks and storage systems. Built from robust SS316L and carbon steel, with ATEX-certified swivel joints, ERC safety mechanisms, and corrosion-resistant materials, it delivers reliable performance in oil, gas, and petrochemical operations

Enquire Now

Share This Items :

Product Details

Product Overview
The JETAX JLA2543 LPG Loading Arm is engineered for secure and efficient LPG transfer in high-pressure environments. Suitable for both loading and unloading from railway and truck tanks to fixed storage or piping systems, it is widely used in the oil, gas, and petrochemical industries.

Built for Safety & Performance

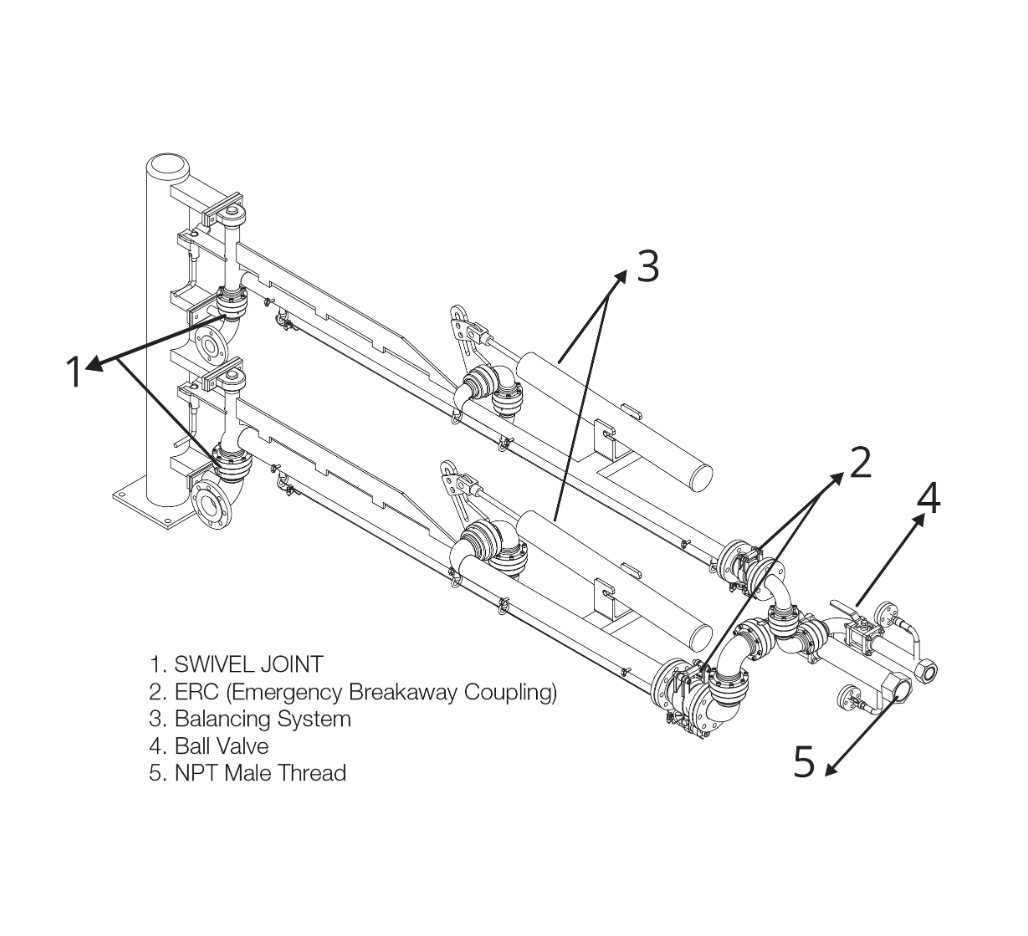

Crafted from SS316L and carbon steel, this system integrates advanced safety and operational components, including:

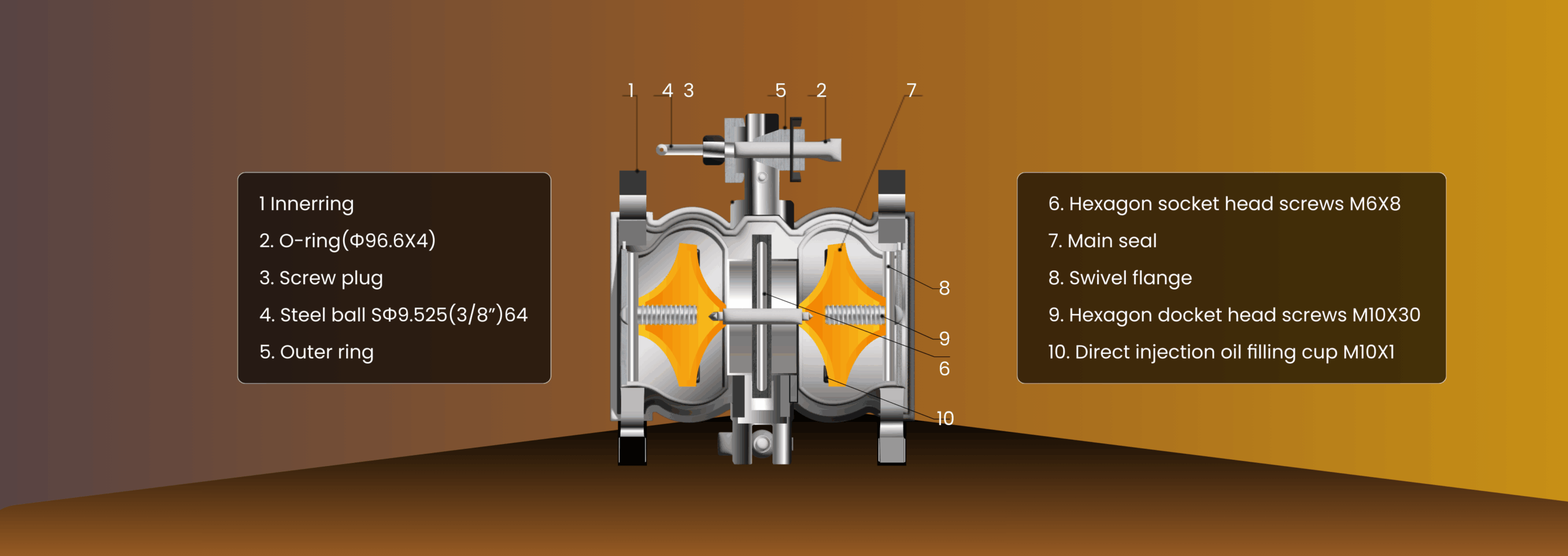

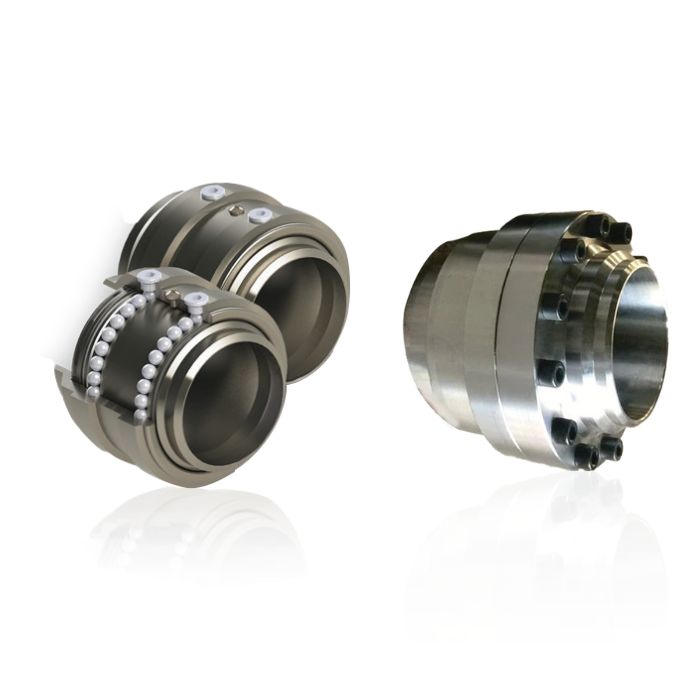

Swivel Joints: 360° gas-tight rotation, ATEX/IECEx certified

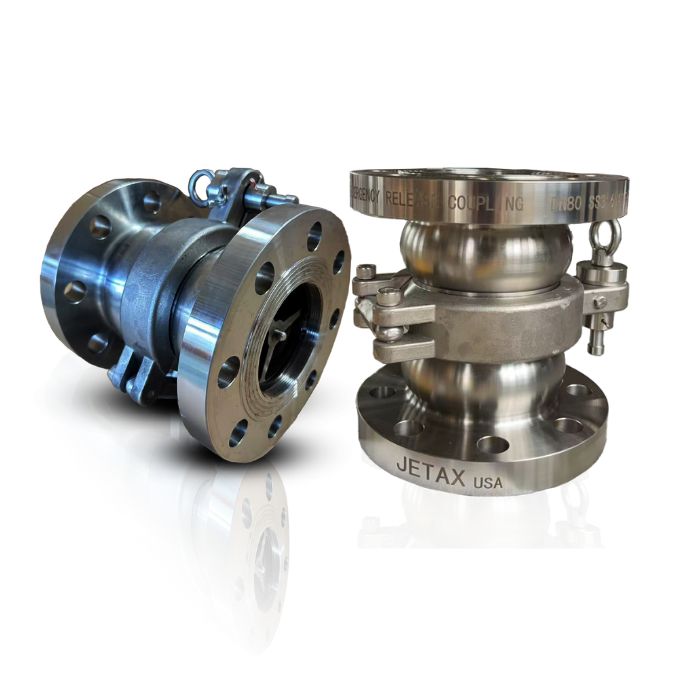

Emergency Release Coupler (ERC): Automatic sealing in emergency disconnection
Spring Cylinder Balancing System: Effortless manual handling
ANSI-compliant Ball Valves: SS316 construction, up to 150 PSI
Corrosion-resistant finish for long service life

Applications:

Terminals & Refineries
Petrochemical Plants
Fuel Storage Depots
Industrial Gas Distribution Systems
Railcar & Truck Filling Stations

Compliance & Certification:
Manufactured and tested according to:

ASME B16.5 / B16.25 / B16.34
API 6D, 2510
ISO 16904
EN 1474
OCIMF Guidelines
ANSI / ASTM / AWS Standards

Technical Specifications:

Model: JLA2543
Application: LPG rail/truck loading & unloading
Design Temperature: -20°C to +70°C
Pressure Rating: Up to 25 bar (tested at 37.5 bar)
Diameter Options: DN50 (2″) & DN80 (3″)
Mounting Options: Right-hand or custom retraction positions

Why Choose JETAX LPG Loading Arms?

Compatible with both bottom and top loading
Custom-built for site-specific conditions
Explosion-proof & leak-proof operation
Long-lasting corrosion resistance
Easy inspection and low maintenance

Attribute	Value
Product Type	LPG Loading Arm
Model	JLA2543
Brand	Jetax
Material	SS316L, Carbon Steel
Application	LPG rail & truck loading/unloading
Diameter Options	DN50 (2″), DN80 (3″)
Design Temperature	-20°C to +70°C
Pressure Rating	25 bar (tested 37.5 bar)
Swivel Joints	360° rotation, ATEX/IECEx certified
ERC	Auto-sealing safety coupler
Compliance Standards	ASME, API, ISO, EN, OCIMF, ANSI, ASTM, AWS
Loading Type	Bottom & Top Loading
Mounting Options	Right-hand or custom retraction
