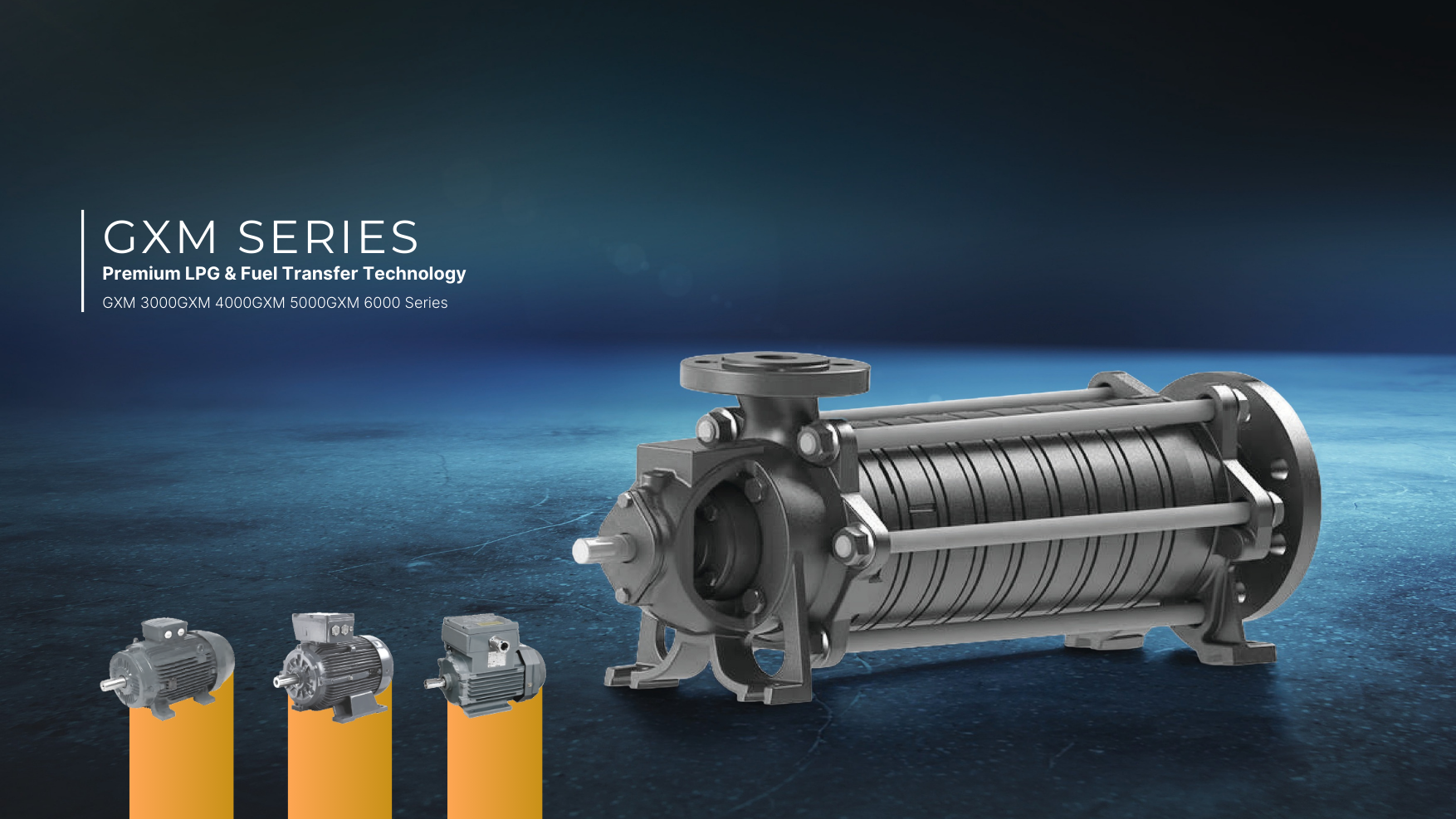

GXM Series LPG Transfer Pump

High-performance LPG transfer pump with flow rates up to 35 m³/h and max pressure 300 PSI, designed for bulk transfer, cylinder filling, and petrochemical applications.

Enquire Now

Share This Items :

Product Details

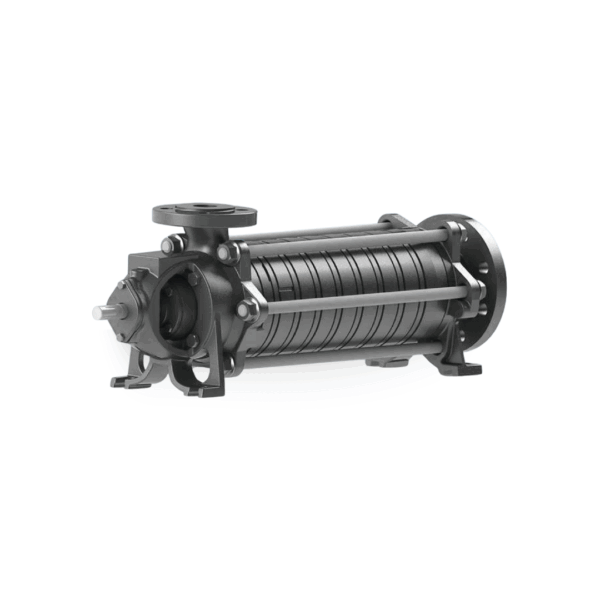

The GXM Series LPG Transfer Pump is engineered for safe and efficient handling of LPG, propane, butane, ammonia, and clean liquids with entrained gas. With a flow capacity of up to 35 m³/h (154 GPM) and maximum operating pressure of 300 PSI, this pump is built for continuous duty in the most demanding conditions.

Featuring a self-priming side-channel design with cavitation-resistant hydraulics, the GXM series ensures stable suction and prevents dry-run risks, even at low NPSH. Its forged steel internals, triple bearing support, and modular construction provide exceptional reliability and easy maintenance.

The pump is designed for long lifecycle performance, with MTBF exceeding 30,000 hours, and supports extreme environments from -40°C to +120°C. Available with explosion-proof motors (Class I, Div 1/2) and optional IoT monitoring, it meets global standards for safety, efficiency, and durability.

Key Features:

Max flow rate: 35 m³/h (154 GPM)
Max pressure: 300 PSI
Ambient temperature: -29°C to 60°C
Handles up to 20% vapor content
Cavitation-resistant hydraulic design (92% volumetric efficiency)
Explosion-proof motor options (hazardous environments)
Rugged, corrosion-resistant stainless steel/alloy construction
Modular design for easy seal and bearing replacement
Quiet operation: <75 dB (OSHA-compliant)
MTBF >30,000 hours for lifecycle reliability

Technical Specifications:

Max Operating Pressure: 300 PSI
Flow Rate: Up to 35 m³/h (154 GPM)
Inlet/Outlet Sizes: 2″ – 4″ NPT
Temperature Range: -40°C to 120°C (fluid), -29°C to 60°C (ambient)
Drive System: Direct-coupled, high-efficiency motors
Efficiency: Up to 92% volumetric efficiency
Noise Level: <75 dB(A)
Construction: ANSI-grade stainless steel / hardened alloys
Seal: Quick-change mechanical seal (API 682 compliant)
MTBF: >30,000 operating hours

Applications:

LPG bulk transfer systems
Cylinder filling stations
Petrochemical loading/unloading
Portable tank refueling
Vapor recovery operations

Attributes:

Attribute	Values (comma-separated)
Pump Type	LPG Transfer Pump
Series	GXM 3000, GXM 4000, GXM 5000, GXM 6000
Flow Capacity	Up to 35 m³/h (154 GPM)
Max Pressure	300 PSI
Temperature Range	-40°C to +120°C (fluid), -29°C to +60°C (ambient)
Motor Options	Explosion-proof (Class I, Div 1/2)
Applications	LPG Transfer, Cylinder Filling, Bulk Loading
Noise Level	<75 dB(A)
