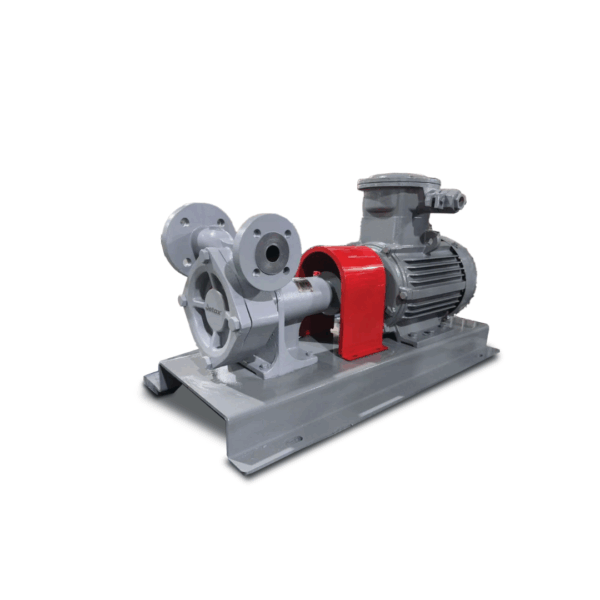

Jetax JXTP150 Regenerative Turbine Pump

The Jetax JXTP150 Regenerative Turbine Pump is engineered to deliver exceptional performance in high-pressure applications. Its unique impeller design ensures continuous fluid recirculation, providing smooth, non-pulsating LPG transfer.

Applications:

• Under & above-ground autogas dispensing
• Multiple cylinder filling stations
• Dual-hose dispenser systems

Features & Benefits:

• Handles liquefied gases without flashing
• Long bearing life with heavy-duty ball bearings
• Silicon carbide seal seat reduces maintenance
• Floating impeller for optimized flow and quiet operation
• High strength ductile iron ASTM A536 casing for thermal shock resistance
• Installation versatility with direct drive or C-face motor mounting
• ASME or DIN flanges for worldwide compatibility
• Runs at 50 or 60 Hz

Material Specifications:

• Case & Cover: Ductile iron ASTM A536
• Impeller: Copper alloy CA-836
• Shaft: Steel, zinc plated
• Seal seat: Silicon carbide
• Seal rotor & metal parts: Carbon / Stainless steel
• O-rings: Buna-N

Operating Specifications:

• Inlet: 1-1/2″ ASME Class 300 RF (DIN optional)
• Outlet: 1″ ASME Class 300 RF (DIN optional)
• RPM: 2880 @ 50 Hz, 3450 @ 60 Hz
• Max Working Pressure: 400 psig (27.6 bar)
• Max Driver: 20 hp (15 kW)
• Temperature Range: -25° to 225°F (-32° to 107°C)
